The CPI Separator is designed for industrial facilities that need a practical solution for oil-water separation within their wastewater management process. It can be incorporated into treatment projects where oily wastewater is collected from manufacturing operations, production areas, equipment-related activities, or oil handling facilities.
The CPI Separator is designed for industrial facilities that need a practical solution for oil-water separation within their wastewater management process. It can be incorporated into treatment projects where oily wastewater is collected from manufacturing operations, production areas, equipment-related activities, or oil handling facilities.
Selecting the right separator involves more than identifying the wastewater source. Flow capacity, available installation space, equipment dimensions, and the requirements of the overall treatment process also need to be considered. The CPI Separator range includes 11 models, with rated flow capacities from 24 to 1,980 gpm, providing options for projects of different scales.
The equipment uses a corrugated plate configuration to support gravity-based separation. Its model options allow customers to compare rated capacity, separation area, weight, and dimensions when planning a new wastewater treatment installation or upgrading an existing facility.
As an industrial wastewater treatment equipment manufacturer, we offer model selection assistance and project-based customization. Customers can provide their basic project information to discuss equipment specifications and obtain a quotation tailored to their requirements.
Product Advantages
1. Flexible Capacity Selection: Eleven available models cover rated flow capacities from 24 to 1,980 gpm, helping customers compare equipment options for different wastewater flow requirements.
2. Space Planning Support: Overall dimensions are available for each model, making it easier to assess equipment placement and coordinate the separator with the site layout.

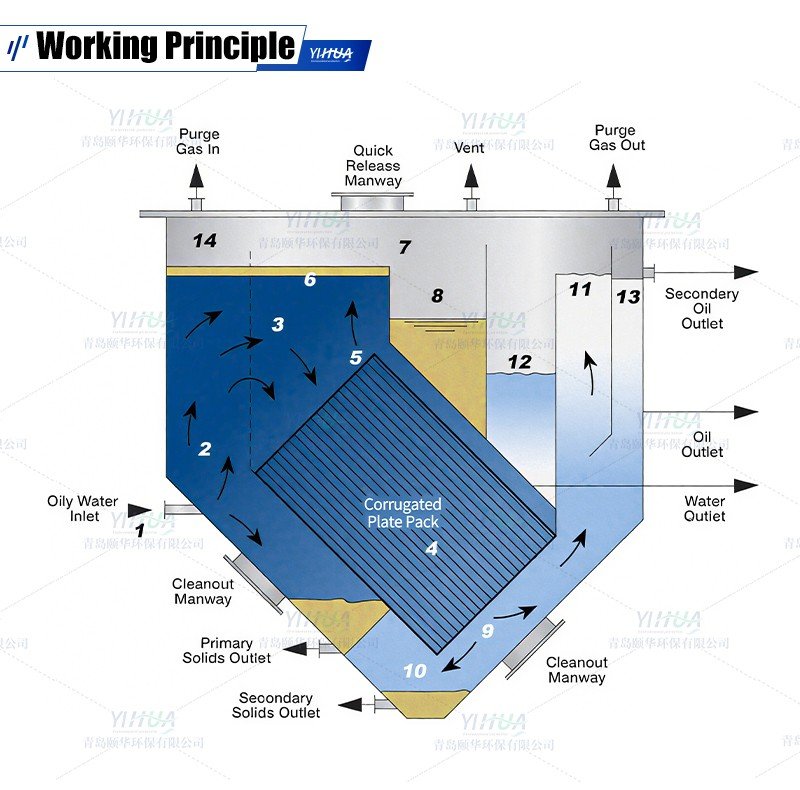

3. Corrugated Plate Configuration: The internal plate arrangement provides additional surfaces for gravity-based separation, supporting the oil-water separation process.
4. Project-Oriented Configuration: Equipment selection can be discussed according to the required flow rate, installation conditions, and the intended role of the separator within the treatment line.
5. Integration into Treatment Processes: The separator can be considered as part of a broader industrial wastewater treatment arrangement, depending on the project design.
6. Manufacturer Communication: Customers can communicate directly with the manufacturer regarding model specifications, equipment dimensions, and project customization requirements.
Industrial Applications
1. Petrochemical Production Facilities: Suitable for projects involving oily wastewater collected from relevant production and supporting operations.
2. Metal Processing Workshops: Can be considered for wastewater management in machining and metalworking facilities where oil-water separation is required.
3. Automotive Production Lines: Applicable to selected wastewater streams generated by vehicle manufacturing and related industrial activities.
4. Factory Drainage Systems: Can be incorporated into wastewater collection and pretreatment arrangements for industrial workshops and production areas.
5. Oil Storage and Transfer Operations: Suitable for projects handling wastewater associated with oil storage, transfer, and related facility operations.
6. Industrial Wastewater Treatment Upgrades: Can be evaluated when an existing treatment facility needs an oil-water separation unit or additional pretreatment capacity.
Model Selection and Installation Planning
| Model | Flow Rate | Free Area | Effective Area | Dry Weight | Wet Weight | Dimensions |
| gpm | sq.ft. | sq.ft. | lbs | lbs | LxWxH (in) | |
| CPI-1 | 24 | 5.5 | 32 | 960 | 1880 | 6’10” x 4′ x 6’5″ |
| CPI-3 | 42 | 7 | 65 | 1930 | 4430 | 7’6″ x 4′ x 7’10” |
| CPI-5 | 82 | 15 | 129 | 4200 | 7000 | 8’7″ x 8′ x 9’2″ |
| CPI-15 | 165 | 33 | 258 | 6200 | 19000 | 9′ x 8′ x 10’4″ |
| CPI-30 | 330 | 52 | 517 | 7800 | 27000 | 12’5″ x 8′ x 10’4″ |
| CPI-45 | 495 | 65 | 776 | 9400 | 37500 | 14’4″ x 8′ x 10’4″ |
| CPI-60 | 660 | 78 | 1034 | 10500 | 47964 | 16’4″ x 8′ x 14’9″ |
| CPI-90 | 990 | 87 | 1550 | 13000 | 63118 | 17’8″ x 8′ x 14’9″ |
| CPI-120 | 1320 | 108 | 2067 | 16000 | 78773 | 21′ x 8′ x 14’9″ |
| CPI-150 | 1650 | 130 | 2584 | 20540 | 96350 | 24’2″ x 8′ x 14’9″ |
| CPI-180 | 1980 | 151 | 3101 | 23520 | 132940 | 27’6″ x 8′ x 14’9″ |
Choosing a CPI Separator starts with understanding the project's operating requirements. The rated flow capacity should be considered alongside the available installation area and the layout of the existing or planned wastewater treatment system.
The technical specification table provides the main information needed for preliminary comparison, including rated flow rate, free area, effective area, dry weight, wet weight, and overall dimensions.
For projects with limited space or specific layout requirements, customers can discuss equipment dimensions and possible configuration adjustments with our team. The final model should be selected based on the project requirements and confirmed technical specifications.
Request a Quote
Planning an industrial wastewater treatment project? Contact us to discuss a CPI Separator configuration for your facility.
To help us understand your requirements, please provide:
1. Your industry and wastewater source.
2. The required or estimated wastewater flow rate.
3. The available installation area.
4. Whether the separator will be used in a new project or an existing treatment system.
5. Any project-specific dimensions or configuration requirements.
Based on the information provided, our team can help you review the available models and prepare a project quotation.
