Why 60° and 50mm Matter: Decoding the Design Secrets of Inclined Plate Settlers

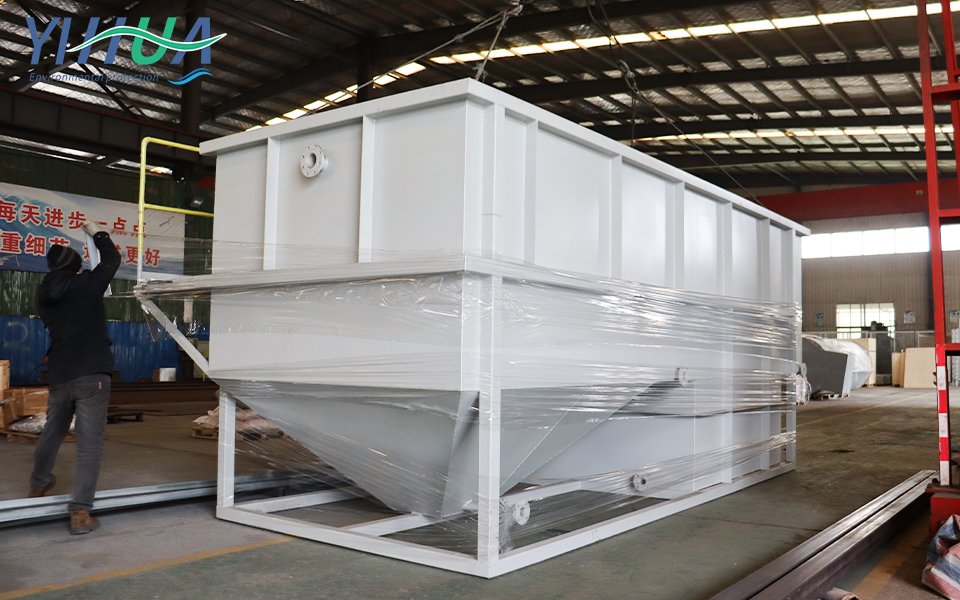

At first glance, an inclined plate settler—also known as a lamella clarifier—appears to be a simple collection of slanted panels. However, behind this minimalist design lies a sophisticated calculation of fluid dynamics. Every angle, every millimeter of spacing, and every material choice is engineered to solve a specific water treatment challenge.
Understanding these core parameters allows plant operators and engineers to maximize equipment performance and troubleshoot issues before they lead to costly downtime.
1. The Golden Angle: Why 60 Degrees?
In the wastewater industry, 60 degrees is the "magic number" for plate inclination. This specific angle is a calculated compromise between two competing forces:
The Self-Cleaning Requirement: If the angle is below 45°, sludge and solids tend to accumulate on the plates rather than sliding down. This leads to scaling, biological growth, and eventual clogging.
Maximizing Settling Area: If the angle exceeds 60°, the "projected" horizontal settling area decreases significantly. This would require a much larger tank to achieve the same treatment capacity.
The Optimal Balance: At 60°, most industrial sludges achieve a reliable gravity-driven slide while maintaining a high effective settling surface. While some custom designs use 55° for specific high-friction solids, 60° remains the global industry standard for reliability.
2. Plate Spacing: Balancing Capacity and Clarity
The gap between plates—typically ranging from 25mm to 80mm—is the primary lever for tuning a system to specific water chemistry.
Narrow Spacing (25mm to 35mm)
This configuration provides the maximum possible settling area within a compact footprint. It is primarily used for potable water treatment or tertiary polishing applications. Because the gaps are tight, it is highly effective at capturing fine particles but requires very low influent solids to prevent maintenance issues.
Medium Spacing (50mm)
Commonly referred to as the "workhorse" of industrial wastewater, 50mm spacing offers an ideal balance between high surface area and clog resistance. It is the go-to choice for manufacturing facilities and food processing plants that manage moderate solids loads.
Wide Spacing (80mm and Above)
Designed specifically for heavy-duty applications such as mining, primary sewage, or high-density sludge environments. The wide gaps prevent "bridging," where solids get stuck between plates. While these systems may require taller tanks to compensate for the reduced surface area, they offer the highest level of operational security in extreme conditions.
3. Plate Length and Tank Depth Geometry
While it might seem that longer plates always equal better settling, there is a point of diminishing returns in practical engineering.
Optimal Length: Most industrial modules utilize plates between 1.5m and 3m. If plates are too long, the distance a particle must travel to reach the plate surface increases, which can actually decrease overall hydraulic efficiency.
The Depth Ratio: The total tank depth must be correctly partitioned between the Clear Water Zone (top), the Plate Pack (middle), and the Sludge Hopper (bottom). A professional design ensures the water enters the plates from below in a calm, uniform manner.
4. Material Selection: Beyond Just Plastic
The chemical environment and temperature of the wastewater dictate the material of the plates. Choosing the wrong material can lead to structural warping or chemical degradation.
PVC (Polyvinyl Chloride): The industry standard for municipal and light industrial use. It is lightweight, cost-effective, and offers excellent chemical resistance, with a temperature limit of approximately 60°C.
Polypropylene (PP): A step up for industrial sites. It handles higher temperatures (up to 80°C) and offers superior resistance to aggressive chemical solvents.
Stainless Steel: The "indestructible" option. Reserved for extreme temperatures, abrasive solids, or food-grade applications where strict hygiene and steam-cleaning are required.
FRP (Fiberglass): Ideal for highly corrosive environments where traditional plastics might become brittle or fail over time.
5. The Invisible Success Factors: Inlets and Outlets
Even a perfectly engineered plate pack will fail if the water enters or exits the system incorrectly.
Uniform Inlet Distribution: Water must enter the plate pack evenly across its entire width. Engineers use perforated pipes or baffle walls to break up "jetting" and create a calm, upward flow that doesn't disturb settling solids.
Precision Outlet Launders: The collection troughs at the top must be perfectly level. Even a 1cm tilt can cause a 30% flow imbalance, leading to "short-circuiting" where water bypasses the plates entirely, ruining the effluent quality.
Summary
By mastering these design secrets—the 60° angle, the 50mm spacing, and the correct material—operators can ensure their wastewater treatment equipment runs at peak efficiency. When these variables are aligned, the result is clearer effluent, drier sludge, and significantly lower operational costs.
