Rainstorms, Batch Dumps, and Overtime: Can Your Settler Handle Real-World Flow?
Engineering Resilient Wastewater Systems for Unpredictable Operating Conditions
In a perfect world, wastewater flows at a constant rate and concentration. In reality, plants face sudden storm surges, production batch dumps, and diurnal swings that push equipment to its breaking point. While inclined plate settlers (IPS) are inherently more robust than traditional tanks, understanding how they manage these variations is key to maintaining compliance during an upset.
The Reality of Flow Volatility
Operating conditions rarely remain static. Most facilities must contend with three primary types of instability:
Hydraulic Peaks: Heavy rainfall or rapid production discharges can double or triple flow rates in a matter of hours.
Solids Shocks: Equipment washdowns or process failures release concentrated "slugs" of solids into the system.
Compositional Shifts: Fluctuations in pH, temperature, or chemical usage alter the settling characteristics of the particles.
Why Inclined Plate Settlers Excel Under Pressure
Compared to conventional sedimentation tanks, the unique geometry of an IPS provides a built-in safety margin:
Short-Circuit Resistance: The parallel plate structure forces water to distribute evenly across multiple channels. This prevents "short-circuiting"—where water rushes through a tank without being treated—and localizes the impact of surges.
Rapid Recovery Times: Because the settling distance is measured in centimeters rather than meters, hydraulic disturbances clear quickly. While a conventional tank might take hours to stabilize after a surge, an IPS often recovers within minutes.
High Solids Tolerance: The 60-degree sloped surfaces continuously shed accumulated sludge. This prevents the massive "sludge blanket" rise that often leads to solids carryover in traditional clarifiers during high-flow events.
Design Features for Maximum Resilience
Smart engineering can further enhance a settler’s ability to handle the unexpected:
Precision Outlet Weirs: High-quality designs use adjustable V-notch weirs to ensure perfectly uniform flow distribution, even when levels fluctuate.
Redundant Inlet Ports: Distributing influent through multiple ports reduces localized velocity and prevents turbulence within the plate packs.
Integrated Bypass Lines: For extreme weather events, bypass provisions protect the core plate modules from catastrophic overloading while maintaining a baseline of treatment.
Operator Strategies for Peak Performance
Even the best equipment performs better with proactive management. Experienced operators use several tactics to maintain effluent quality during spikes:
Dynamic Chemical Dosing: Increasing polymer dosage during hydraulic peaks helps particles flocculate faster, compensating for reduced retention time.
Strategic Sludge Withdrawal: If a solids shock is anticipated, increasing the frequency of sludge removal ensures the hoppers have maximum capacity to receive new material.
Visual Effluent Monitoring: Utilizing simple sight glasses or automated turbidity sensors allows for immediate intervention—such as flow restriction or chemical adjustment—before a permit violation occurs.
Case Study: Resilience in Food Processing
A vegetable canning facility faced a recurring nightmare: during peak harvest, water volume tripled and solids loads skyrocketed. By installing an inclined plate settler equipped with automated dosing tied to influent turbidity, the plant eliminated seasonal upsets. The system was engineered for peak load rather than average flow, allowing it to absorb the harvest surge without a single compliance failure.
Summary: Planning for the Worst Case
When specifying a new system, success depends on providing realistic data. Don't just design for the average; provide your supplier with peak flow rates, worst-case solids concentrations, and potential future production increases.
With the right design and a proactive operational strategy, an inclined plate settler ceases to be just a piece of equipment—it becomes a resilient barrier that protects your facility against real-world volatility.

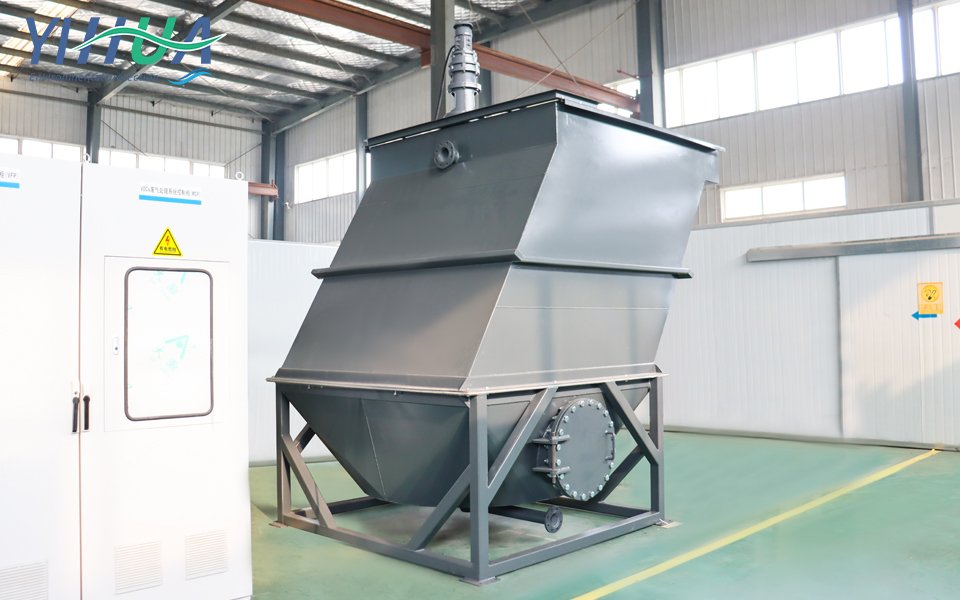

For more information about lamella clarifier, please contact us: winnie@yihuaep.com
