Decentralized wastewater treatment—serving isolated industrial parks, remote resorts, mining camps, and community developments without access to municipal grid infrastructure—places exceptionally tight constraints on engineering design. These plants must achieve ironclad effluent compliance within minimal physical space, at a capital cost the project economics can actually bear, and with an operational simplicity that non-specialist site personnel can easily manage.
For decades, the cast-in-place concrete settling tank was the default primary clarification choice. Its familiarity and reliance on local civil contractors made it the path of least resistance. However, as land costs rise, project timelines compress, and environmental limits tighten, traditional concrete infrastructure is rapidly being displaced by Lamella Clarifier packs. This technology delivers a transformative shift in every metric that matters to decentralized plant economics and execution.
1. The Concrete Settler: A Familiar But Footprint-Heavy Legacy
The physics of a conventional concrete settling tank are fundamentally bound by gravity and horizontal surface area. Wastewater enters the tank and flows slowly toward an outlet weir; suspended particles must sink to the floor before the water exits. Because the effective settling area equals the literal horizontal footprint of the tank floor, the only way to increase treatment capacity is to build a larger tank.
In a decentralized setting, this is a massive liability. For example, a standard concrete settler sized to treat $500 \text{ m}^3/\text{day}$ at a conservative surface loading rate easily demands a baseline floor area of $50 \text{ m}^2$ or more—excluding the space required for freeboard, inlet/outlet baffles, sludge hoppers, and perimeter maintenance access.
Furthermore, civil construction in remote areas introduces massive variables. Forming, pouring, curing, and waterproofing a heavy concrete structure on-site takes weeks or months, leaving the final asset quality entirely at the mercy of local contractor capability and weather conditions. Once poured, the asset is permanently anchored; it cannot be expanded, reconfigured, or relocated if factory production lines change or a lease ends.
2. The Lamella Pack: Maximizing Settling Physics in a Fraction of the Space

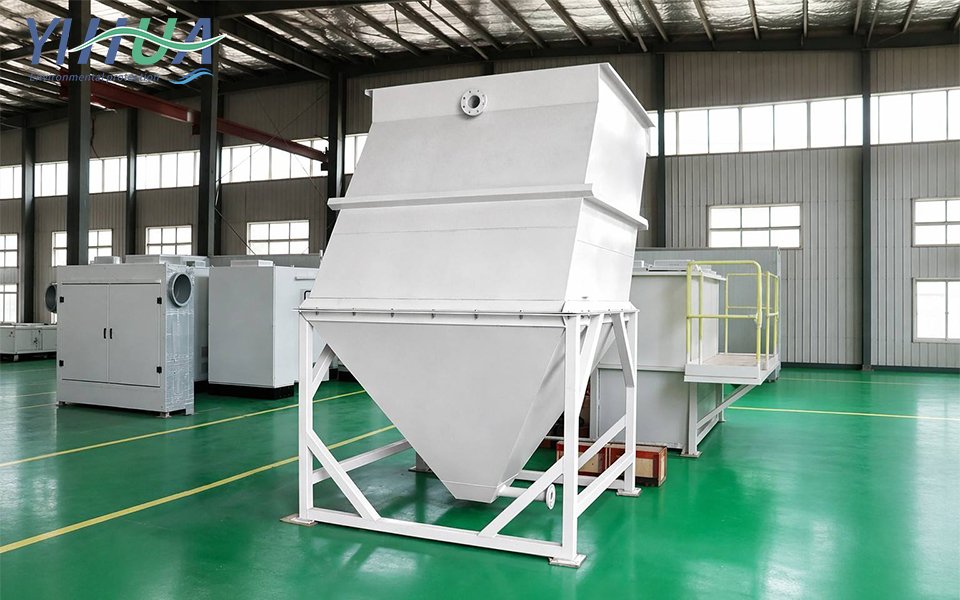

A Lamella Clarifier pack completely rewrites this equation by replacing a single, massive horizontal floor with a dense stack of closely spaced, inclined plates housed within a compact, engineered vessel. As wastewater flows upward through these narrow channels, solids only need to settle a few centimeters before landing on a plate surface, where they slide down into a concentrated sludge hopper.
By stacking these surfaces vertically, the effective settling area becomes the sum of the projected horizontal areas of all the plates. The geometric efficiency is stunning: a Lamella unit providing the exact same clarification capacity as a $50 \text{ m}^2$ concrete tank requires a physical footprint of just 5 to 8 $\text{m}^2$. For space-constrained sites, this difference often represents the boundary between a feasible project and one that cannot be built.
Beyond shrinking the plant’s physical boundaries, prefabricated Lamella packs solve the core headaches of decentralized project delivery:
Plug-and-Play Deployment: A Lamella clarifier arrives at the job site fully factory-assembled and tested. Instead of managing a multi-month civil construction project, installation is reduced to a few days spent anchoring the skid onto a simple flat concrete pad and connecting the plumbing.
Guaranteed Fabrication Quality: Concrete tanks are prone to micro-cracking, unlevel weirs, and uneven flow distribution when cast under field conditions. A Lamella vessel is manufactured under strict factory quality control, ensuring that internal flow distribution baffles, plate angles, and weir levels are precise to the millimeter before shipping.
Asset Preservation and Mobility: Decentralized plants often serve temporary facilities, construction camps, or projects backed by short-term leases. A concrete tank has zero salvage value and becomes a permanent liability upon decommissioning. A stainless steel or epoxy-coated carbon steel Lamella vessel retains high asset value and can be easily disconnected, loaded onto a truck, and redeployed to a new site.
3. Performance Dynamics in the Field
In decentralized applications, flow rates are rarely steady; they spike and trough based on shift patterns, guest occupancy, or batch washdowns. Open concrete clarifiers are highly sensitive to these hydraulic surges, which create internal turbulence, short-circuiting, and pin-floc carryover.
In contrast, the tight channels of a Lamella plate pack maintain a highly controlled, laminar, low-turbulence flow environment ($Re < 500$) that dampens hydraulic shocks and ensures consistent particle separation.
Sludge management is similarly optimized. The steep incline of the plates ($55^\circ \text{ to } 60^\circ$) naturally thickens the settling solids as they slide into the hopper. The resulting sludge is significantly more concentrated than what is scraped from a flat concrete floor, meaning less water is wasted during blowdowns and downstream sludge dewatering equipment can be sized much smaller.
4. Building the Compact Decentralized Treatment Train
For a highly efficient, space-saving decentralized plant, components must work in harmony. If the influent contains heavy grease or oils—common in food processing or resort kitchens—a compact CPI (Corrugated Plate Interceptor) or a high-efficiency DAF system should be installed upstream to strip out free and emulsified oils, protecting the Lamella plates from sticky organic fouling.
Downstream of the Lamella clarifier, a Moving Bed Biofilm Reactor (MBBR) can be seamlessly integrated to handle dissolved organic (COD/BOD) reduction. This combination maintains the compact, modular, high-throughput philosophy of a modern decentralized plant, keeping the total footprint minimal without sacrificing treatment depth.
Summary
The historic dominance of concrete settlers in decentralized wastewater treatment was driven by tradition, not technical superiority. The engineering advantages of Lamella Clarifier packs—delivering up to ten times the settling capacity per unit of land area, factory-guaranteed quality, rapid commissioning times, and long-term asset mobility—make the transition away from permanent civil infrastructure an easy choice. For modern developers and plant engineers, upgrading to a Lamella pack is the smartest way to de-risk a project while saving critical real estate.
