Automotive painting and surface treatment operations generate some of the most chemically complex, volatile wastewater streams in the manufacturing sector. The toxic cocktail of effluents from phosphating, degreasing, and chromate conversion lines—combined with paint spray booth scrubbing water—presents a severe treatment challenge. The resulting wastewater is packed with free and emulsified oils, sticky paint solids, heavy metals, aggressive surfactants, and organic solvents.
To consistently meet stringent discharge standards, a treatment plant must systematically target each pollutant fraction in the correct sequence. The combination of a Corrugated Plate Interceptor (CPI) for primary oil separation, followed by a Dissolved Air Flotation (DAF) system for secondary emulsified oil and paint solids removal, has emerged as the global engineering benchmark for this application. By leveraging the distinct physical-chemical mechanisms of each technology, this dual-stage approach achieves an effluent quality that neither system could ever deliver alone.
1. Dissecting the Automotive Wastewater Challenge
Automotive painting wastewater contains two distinct oil fractions that require completely different separation physics:
Free Oil: With droplet diameters exceeding 150 microns, these oils separate readily via enhanced gravity. They originate primarily from machinery maintenance drainage, floor washdowns, and conveyor system runoff.
Emulsified Oil: With droplet diameters below 150 microns, these oils are chemically stabilized by the heavy surfactants and cleaning agents used in degreasing lines. They completely resist gravity settling and require chemical emulsion-breaking combined with micro-bubble flotation to separate.
Compounding this is the presence of paint solids from the spray booths, which are chemically sticky and highly prone to fouling equipment, alongside dissolved heavy metals (zinc, manganese, and chromium) from the phosphating lines that must be forced out of solution before any oil-water separation can safely begin.
2. Pre-Treatment: Heavy Metal Precipitation
Before the wastewater ever touches an oil separator, it must undergo pH adjustment and chemical precipitation. Adding an inorganic coagulant at this stage serves a dual purpose: it converts dissolved heavy metals into insoluble hydroxide flocs and begins destabilizing the surfactant-stabilized oil emulsion by neutralizing the negative surface charges of the droplets.
Passing this mixture through a Lamella Clarifier or a primary settling tank removes the bulk of the dense inorganic heavy metal precipitates. Eliminating these heavy solids upstream is a critical protective step; it prevents abrasive grit from fouling the CPI plate packs and ensures that the oily float recovered later in the DAF stage isn't heavily contaminated with toxic metal sludge.
3. Stage One: CPI for Primary Free Oil Removal
Once the heavy metals are cleared, the wastewater flows into the CPI. The internal corrugated plate geometry creates a low-turbulence, laminar flow environment that drastically shortens the rise distance of free oil droplets. As the water passes through the plate pack, free oil floats to the underside of the plates, coalesces into larger droplets along the plate troughs, and rises into the top oil recovery zone for skimming. Simultaneously, any residual fine grit slips down the plates into the bottom sludge hopper.
In automotive plants, a well-calibrated CPI stage acts as a highly effective buffer. It routinely slashes total oil and grease (O&G) concentrations from several hundred milligrams per liter down to below 50 mg/L. This massive reduction protects the downstream DAF from hydraulic and organic shocks, optimizing its performance and cutting chemical consumption.

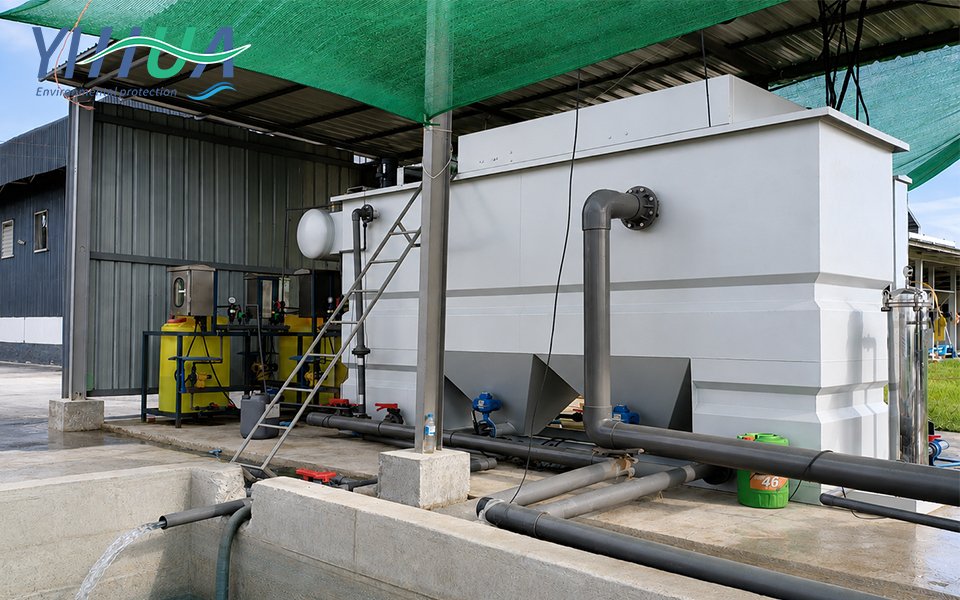

4. Stage Two: DAF for Emulsified Oil & Paint Solids Removal
The DAF system steps in to solve the exact problem that leaves a CPI powerless: capturing emulsified oil droplets and sticky, low-density paint solids. Ahead of the DAF flotation zone, the wastewater is dosed with targeted coagulants and advanced polymers to finish breaking the emulsion and bind the paint particles into robust, hydrophobic flocs.
Because paint solids are naturally hydrophobic once their surfactant coatings are neutralized, they are highly compatible with micro-bubble attachment. The micro-bubble cloud inside the DAF grabs these flocs and lifts them rapidly to the surface, forming a thick, stable sludge blanket. A well-optimized DAF stage in an automotive paint facility easily drives final O&G concentrations below 10 mg/L and removes over 95% of paint solids, yielding an effluent clear enough to meet most municipal discharge limits.
Sludge Management Note: The resulting DAF float is a highly concentrated mixture of recovered oils, polymers, and paint solids, typically holding a solids content of 3% to 8%. This high density allows the sludge to be pumped directly to a filter press or centrifuge for dewatering without requiring a separate thickening stage, drastically reducing disposal volumes.
5. Downstream Biological Polishing
For automotive facilities discharging into sensitive receiving waters or facing strict chemical oxygen demand (COD) caps, a biological polishing stage can be installed after the DAF. A Moving Bed Biofilm Reactor (MBBR) is the preferred choice here. The fixed-film biomass on MBBR carriers provides extreme resilience against the fluctuating organic loads and residual solvent toxicity that frequently characterize automotive wastewater, safely chewing through any remaining dissolved COD.
6. Operational Integration & Diagnostics
The success of a CPI-DAF treatment train relies heavily on process discipline. Operators must ensure that heavy metal precipitates are thoroughly captured before the water enters the CPI to prevent the plate packs from plugging.
Furthermore, monitoring the oil concentration at the CPI outlet provides an immediate diagnostic health check for the entire plant. A sudden spike in oil leaving the CPI is an early warning sign of plate fouling, a flow surge, or an upstream chemical failure. Catching this early prevents the DAF from being overwhelmed, protecting the final discharge compliance loop.
Summary
The CPI-DAF combined framework offers automotive manufacturing plants a complete, operationally proven solution to an otherwise overwhelming wastewater challenge. By matching the right separation physics to the right pollutant fraction—gravity separation for free oils and micro-bubble flotation for emulsions and paint—this treatment train provides the reliability, low operating cost, and strict environmental compliance that modern automotive manufacturing demands.
