For plant engineers evaluating biological wastewater treatment options, the choice between a Membrane Bioreactor MBR and a Conventional Activated Sludge System is one of the most important decisions in wastewater plant design.

Both technologies rely on microbial activity to remove dissolved organic pollutants, but they differ significantly in solid liquid separation, effluent quality, footprint, operational requirements, and long term economics.

1. How Each Technology Works

Conventional Activated Sludge System

A Conventional Activated Sludge System combines an aeration tank with a secondary clarifier.

Microorganisms break down dissolved organic matter in the aeration basin. The mixed liquor then flows into the secondary clarifier, where biological solids settle by gravity.

The settled sludge is returned to maintain biomass concentration, while clarified water exits the system.

Key characteristics:

• Mature and widely proven technology

• Simple operation and maintenance

• Lower initial investment

However, treatment efficiency is limited by gravity settling. Typical biomass concentrations are around 2,000 to 4,000 mg/L, which restricts reactor loading capacity and increases footprint requirements.

MBR System

The MBR System Membrane Bioreactor replaces the secondary clarifier with microfiltration or ultrafiltration membranes.

The membrane physically retains biological solids inside the reactor, allowing much higher biomass concentrations:

• Approximately 8,000 to 15,000 mg/L MLSS

This enables:

• Smaller reactor volume

• Higher treatment capacity

• Superior effluent quality

2. Capital and Operating Cost Comparison

Initial Investment

Conventional activated sludge systems generally have a lower capital cost.

The MBR System typically requires 20 to 50 percent higher initial investment, mainly due to membrane module costs.

However, MBR systems eliminate the need for large secondary clarifiers, which can partially offset the additional membrane investment, especially at space limited sites.

Operating Cost

MBR systems generally consume more energy due to:

• Membrane permeate pumping

• Membrane scouring aeration

Energy consumption is typically 30 to 50 percent higher per cubic meter treated compared with conventional activated sludge.

Additional costs include membrane replacement, usually required every 7 to 12 years.

However, MBR systems produce less excess sludge, which can reduce:

• Sludge dewatering costs

• Transportation costs

• Disposal expenses

3. Effluent Quality Comparison

The strongest advantage of the MBR System is its superior effluent quality.

The membrane barrier provides:

• Extremely low suspended solids

• Stable turbidity below 1 NTU

• Excellent water reuse potential

MBR treated water can often be used directly as feed for advanced reuse systems such as reverse osmosis.

Conventional activated sludge typically produces effluent with:

• 10 to 30 mg/L suspended solids under normal conditions

Additional tertiary filtration is usually required when high quality water reuse is needed.

4. Footprint and Deployment Flexibility

The MBR System requires approximately 30 to 50 percent less footprint than conventional activated sludge systems.

This advantage comes from:

• Elimination of secondary clarifiers

• Higher biomass concentration

• Smaller biological reactors

MBR technology is also highly suitable for:

• Modular systems

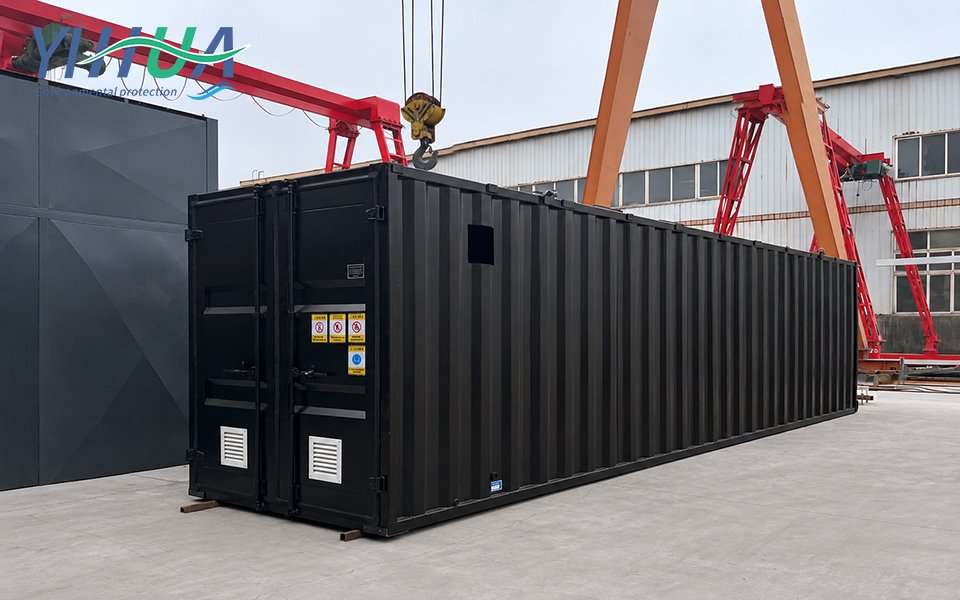

• Containerized wastewater plants

• Industrial retrofits

• Remote installations

where traditional concrete treatment facilities may be difficult to construct.

5. Operational Considerations

Conventional Activated Sludge

Advantages:

• Lower operational complexity

• Less specialized maintenance

• Strong tolerance to process fluctuations

Limitations:

• Sensitive to sludge settling problems

• Larger land requirement

• Lower effluent quality consistency

MBR System

MBR requires more disciplined operation, especially for membrane management.

Key maintenance activities include:

• Regular membrane relaxation cycles

• Chemical cleaning

• Fouling control

Poor membrane maintenance can result in:

• Increased operating pressure

• Reduced filtration performance

• Premature membrane replacement

Proper upstream treatment is essential.

For applications such as food processing and oily wastewater treatment, a DAF System Dissolved Air Flotation is commonly installed before MBR to remove FOG fats oils and grease and protect membrane performance.

Conclusion

The choice between MBR System and Conventional Activated Sludge depends on project priorities.

Conventional activated sludge remains the preferred solution for:

• Large scale applications

• Sites with sufficient land availability

• Projects where water reuse is not required

The MBR System is the better choice when:

• Effluent quality requirements are strict

• Space is limited

• Water reuse is required

• Modular deployment is needed

For industrial applications such as pharmaceutical manufacturing, food processing, and centralized industrial wastewater treatment, MBR provides superior long term performance despite its higher initial investment.
