In industries where oil and water coexist in process streams, including petroleum refining, petrochemical manufacturing, metal machining, vehicle maintenance, and marine operations, effective oil water separation is essential for regulatory compliance and operational stability.

The Corrugated Plate Interceptor CPI has become a widely adopted technology for industrial oily wastewater treatment due to its combination of high separation efficiency, compact footprint, simple operation, and reliable performance in demanding environments.

Compared with traditional API gravity separators, CPI systems provide enhanced separation performance through advanced plate geometry and improved hydraulic control.

1. Why Oil and Water Separation Is Challenging

Although oil is less dense than water and naturally tends to float, industrial wastewater presents several challenges that make simple gravity separation insufficient.

Large free oil droplets above 150 microns can separate relatively easily. However, industrial processes such as pumping, mixing, and chemical contact often break oil into much smaller dispersed droplets ranging from 20 to 150 microns.

These fine droplets rise very slowly under natural gravity separation. In addition, surfactants and emulsifying agents commonly found in industrial wastewater can stabilize oil droplets and prevent efficient separation.

The CPI separator solves this challenge by using engineered plate geometry to accelerate oil droplet coalescence and separation.

2. How the CPI Separator Works

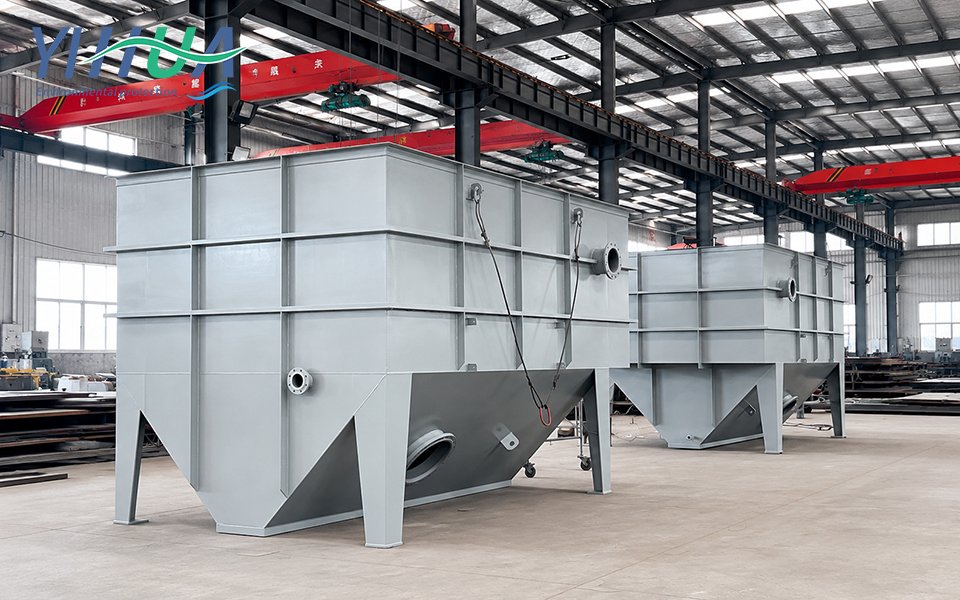

The Corrugated Plate Interceptor CPI operates through enhanced gravity separation using a series of inclined corrugated plates installed inside a compact vessel.

The plates are typically arranged at an angle between 45 and 60 degrees.

As oily wastewater flows through the narrow channels between the plates, several separation processes occur simultaneously.

Oil Droplet Coalescence

Fine oil droplets rise through the wastewater and contact the underside of the corrugated plates.

The unique corrugated structure creates channels where oil droplets accumulate and merge with neighboring droplets. As droplets become larger, their buoyancy increases, allowing them to rise more quickly into the oil collection zone.

This coalescence effect is the key engineering advantage that allows CPI systems to remove smaller oil droplets compared with conventional gravity separators.

Simultaneous Solids Separation

While oil droplets move upward, heavier suspended solids such as:

• Sand

• Rust particles

• Scale deposits

• Metal particles

settle downward along the plate surfaces into the sludge collection area.

This allows the CPI system to achieve oil removal and solids separation within the same compact unit.

Controlled Low Turbulence Flow

The narrow plate channels create a stable low turbulence flow environment.

This reduces:

• Oil droplet re mixing

• Solids re suspension

• Separation efficiency losses

The controlled hydraulic conditions allow continuous and reliable separation performance.

3. CPI vs API Separator: Key Engineering Differences

The API separator is a traditional gravity separation technology that relies mainly on tank volume and residence time.

The CPI separator improves performance through enhanced surface area and controlled flow conditions.

Smaller Footprint

An API separator requires a large tank volume to provide sufficient residence time for oil droplets to rise.

A CPI separator can achieve similar or better separation performance within approximately 10 to 20 percent of the footprint of an equivalent API separator.

This makes CPI especially suitable for:

• Offshore facilities

• Compact industrial sites

• Retrofit projects

Better Fine Oil Droplet Removal

API separators typically perform best with oil droplets larger than approximately 150 microns.

CPI systems can effectively capture smaller dispersed oil droplets, including:

• Around 60 micron droplets in standard applications

• Smaller droplets in optimized designs

This provides a significant advantage for wastewater streams affected by industrial mixing and pumping processes.

Greater Flow Variation Tolerance

API separators are highly dependent on stable flow conditions.

Sudden increases in flow reduce residence time and decrease separation efficiency.

The multiple parallel channels inside a CPI distribute hydraulic loading more evenly, allowing more stable performance under fluctuating flow conditions.

Enclosed Design Advantage

Many CPI systems are available in enclosed configurations.

Compared with open API separators, enclosed CPI systems provide:

• Reduced vapor emissions

• Improved safety in hydrocarbon applications

• Better compliance with air quality requirements

4. Industries Where CPI Systems Deliver Superior Performance

Petroleum Refining and Petrochemical Processing

Refinery wastewater contains complex mixtures of:

• Free oil

• Dispersed hydrocarbons

• Emulsified oil fractions

CPI systems are commonly used as a primary separation stage before downstream treatment such as DAF System polishing and biological treatment.

Metal Machining and Manufacturing

Machining operations generate wastewater containing:

• Cutting fluids

• Lubricants

• Dispersed oils

The CPI separator efficiently removes fine oil droplets created during mechanical processing before further treatment.

Vehicle Maintenance and Fleet Washing

Vehicle washing facilities generate variable oily wastewater streams.

CPI systems provide:

• Compact installation

• Passive operation

• Reliable oil separation

making them suitable for workshops and maintenance facilities.

Marine and Port Operations

Marine wastewater sources such as bilge water and shipyard runoff require reliable oil removal before discharge.

The CPI separator is widely used due to its:

• Compact design

• Enclosed structure

• Stable performance under variable flow conditions

Power Generation

Power plants generate oily wastewater from:

• Turbine lubrication systems

• Transformer oil containment areas

• Fuel handling operations

CPI systems provide effective primary oil removal and protect downstream treatment processes.

5. CPI Integration with Downstream Treatment Systems

The CPI separator is a primary separation technology, not a complete wastewater treatment solution.

For applications requiring higher effluent quality, CPI is typically integrated with additional treatment stages.

A common treatment configuration includes:

CPI System
for bulk oil removal

↓

DAF System Dissolved Air Flotation
for fine emulsified oil polishing

↓

Lamella Clarifier
for suspended solids separation

This multi stage approach provides comprehensive treatment for oily wastewater from petroleum, petrochemical, and heavy industrial applications.

Conclusion

The CPI oil water separator provides a highly efficient solution for industrial oily wastewater treatment by combining compact design, improved fine droplet separation, and reliable operation.

Its corrugated plate structure transforms traditional gravity separation into an advanced coalescence process, enabling better performance than conventional API separators in many industrial applications.

For facilities facing stricter discharge standards, limited installation space, and increasingly complex wastewater characteristics, a treatment system combining CPI, DAF, and Lamella Clarifier technologies provides a technically robust and cost effective solution.
