Lamella Clarifier Technology has become a key solution for high-TSS (Total Suspended Solids) wastewater treatment in many industrial and municipal systems. As regulations on water quality become stricter and treatment facilities aim to reduce footprint and operating costs, this technology is gaining attention for its ability to improve sedimentation efficiency without requiring large tanks or complex infrastructure. In many cases, lamella clarifiers are now being selected as an upgrade or replacement for traditional sedimentation systems where space and efficiency are critical concerns.
Total Suspended Solids (TSS) refer to the particles suspended in water that do not dissolve, such as silt, organic matter, industrial residues, and fine sediments. High-TSS wastewater is common in industries like mining, food processing, chemical production, and construction. If not properly
treated, these solids can damage equipment, reduce water quality, and create environmental risks. Traditional settling methods often struggle to handle high loading rates or fine particles, which leads to inefficiency or increased infrastructure size.

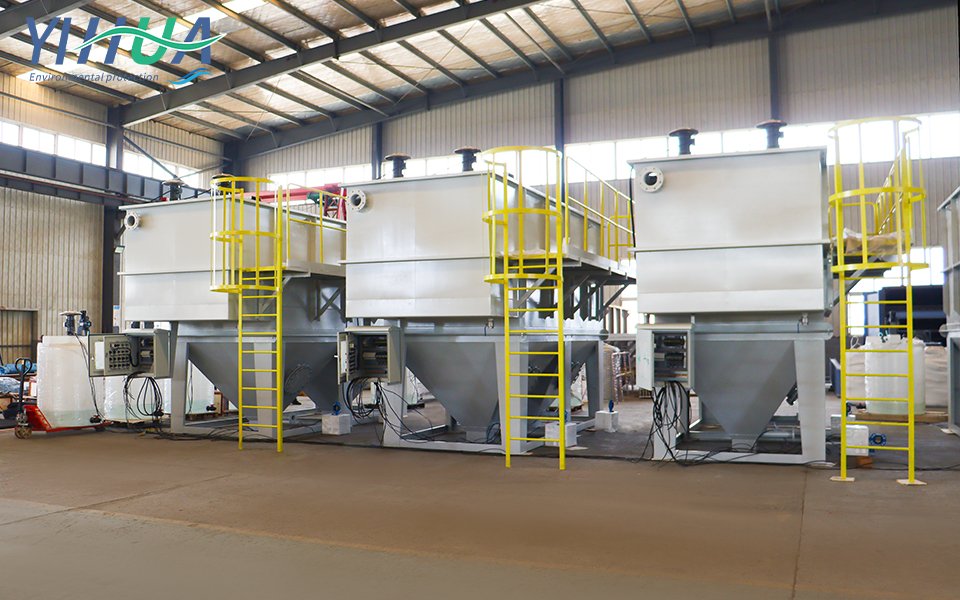

A lamella clarifier is a type of sedimentation unit that uses a series of inclined plates to increase the effective settling area. Instead of relying on a single large basin, it allows particles to settle on multiple parallel surfaces. As water flows upward or downward between the plates, solids settle onto the surfaces and slide down into a sludge collection zone. The clarified water then exits from the top of the system. This design significantly improves the separation process within a smaller physical footprint.
The working process of a lamella clarifier is based on gravity and flow optimization. When influent water enters the system, flow distribution structures help spread it evenly across the plate pack. As the flow slows down between the inclined plates, heavier particles begin to settle. The angle of the plates helps solids move downward naturally without re-suspension. Collected sludge is directed to a hopper or sludge removal system, which can be operated continuously or intermittently depending on system design.
One of the main advantages of Lamella Clarifier Technology is space efficiency. Compared to conventional clarifiers, lamella systems can achieve similar or higher treatment capacity using a fraction of the footprint. This makes them especially suitable for facilities with limited installation space or for retrofitting existing treatment plants. In addition, they are often easier to integrate into modular treatment systems, allowing operators to scale capacity as needed.
Another important benefit is improved solid removal efficiency, especially for fine particles. The increased settling surface provided by the inclined plates allows more contact area for particle separation. This results in better effluent quality and more stable performance under variable flow conditions. In many industrial applications, this can reduce the load on downstream filtration or biological treatment systems, improving overall process efficiency.
Lamella clarifiers are widely used in municipal wastewater treatment, stormwater management, and industrial processes. In mining operations, they help manage slurry and process water with high sediment content. In the food and beverage industry, they assist in removing organic solids and processing waste. They are also used in pulp and paper plants, where fiber recovery and wastewater clarity are important. Their versatility makes them suitable for both primary and secondary treatment stages.
When compared with conventional clarifiers, lamella systems offer several operational differences. Traditional clarifiers require large basins and longer retention times to achieve similar settling performance. This increases construction costs and land requirements. Lamella systems, on the other hand, rely on compact design and increased surface area rather than volume. However, they may require more careful flow control and regular maintenance to prevent clogging or uneven distribution.
Design considerations are important for optimal performance. Plate angle, spacing, hydraulic loading rate, and influent distribution all affect efficiency. If flow is too fast or uneven, solids may not settle properly, reducing performance. Engineers typically optimize these parameters based on wastewater characteristics and treatment goals. Material selection is also important, especially in corrosive or abrasive environments.
Maintenance is another key factor in long-term operation. While lamella clarifiers are generally low-maintenance, periodic cleaning of plates and sludge removal systems is necessary to prevent buildup. In some systems, automated sludge withdrawal and self-cleaning designs are used to reduce manual intervention. Proper maintenance helps ensure stable performance and extends equipment lifespan.
Looking ahead, Lamella Clarifier Technology is expected to continue evolving with improved automation and hybrid treatment systems. Integration with real-time monitoring sensors and smart control systems is becoming more common. These improvements help operators adjust flow rates and sludge removal more precisely. As industries continue to focus on water reuse and sustainability, lamella clarifiers are likely to play an increasingly important role in efficient wastewater treatment strategies.
