In today’s industrial landscape, factories worldwide are facing double pressure: stricter environmental regulations on wastewater discharge (especially TSS - Total Suspended Solids limits) and the urgent need to reduce operational costs. However, traditional gravity sedimentation tanks are often too bulky, requiring massive concrete footprints that modern, space-constrained industrial facilities simply cannot afford.
To overcome these challenges, high-efficiency Lamella Clarifiers (inclined plate clarifiers) have emerged as the premier solid-liquid separation technology, offering a compact, cost-effective, and highly reliable alternative for industrial and municipal wastewater treatment.
1. The Shallow Depth Sedimentation Principle: Doing More in Less Space
The core advantage of a Lamella Clarifier lies in its utilization of the shallow depth sedimentation theory. By replacing a deep, sprawling basin with a series of closely spaced, inclined plates, the settling distance of suspended particles is drastically reduced.
Up to 80% Footprint Reduction: Compared to conventional circular clarifiers, a Lamella Clarifier requires only 10% to 20% of the land area to handle the same hydraulic flow rate. This makes it the ideal choice for upgrading existing plants where expansion space is non-existent.
Maximizing Settling Surface Area: The inclined plates effectively multiply the available settling area within a compact steel tank. Particles only need to settle a few centimeters before landing on a plate and sliding down into the sludge hopper, increasing separation efficiency by 3 to 5 times.
2. Engineering Features of Modern Lamella Clarifiers
As a trusted 20+ years wastewater treatment equipment manufacturer, we design our Lamella Clarifiers with specific industrial pain points in mind, resolving common issues like plate clogging and material degradation:
Anti-Clogging Plate Geometry: Traditional tube settlers often suffer from clogging due to biological growth or high-density sludge accumulation. Our systems utilize optimized V-shaped plate spacing and engineered water distribution to maintain a stable, uniform laminar flow, which facilitates rapid settling while preventing solids from adhering to the plate surfaces.
Corrosion-Resistant Material Options: Industrial wastewater can be highly corrosive, hot, or chemically aggressive. To ensure an ultra-long service life and minimal maintenance, our lamella plate packs and tanks are customizable in Heavy-Duty SS304/SS316L Stainless Steel, FRP (Fiber-Reinforced Plastic), or PP (Polypropylene).

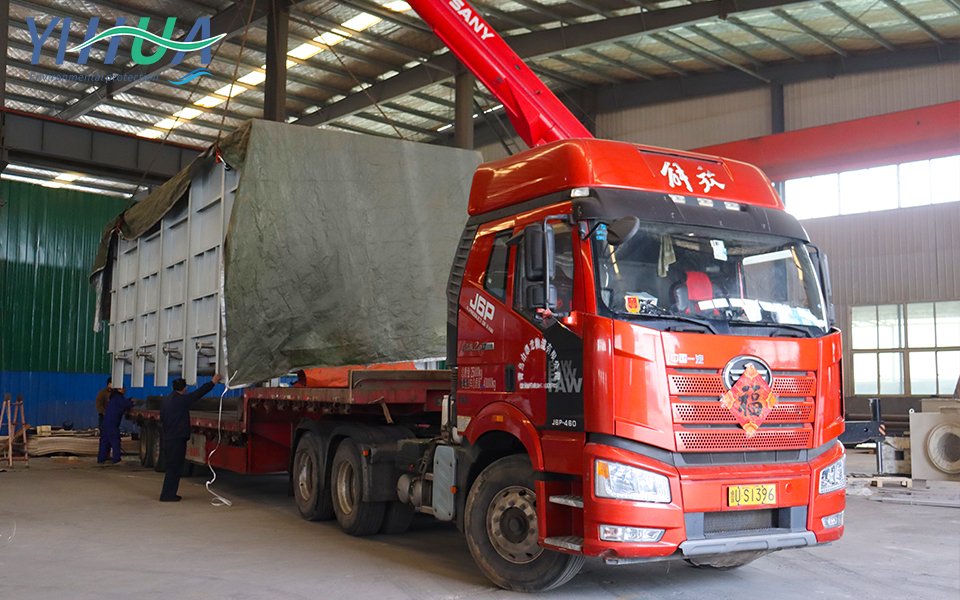

Pre-Assembled & "Plug-and-Play" (Skid-Mounted): To minimize on-site civil work and installation downtime, our Lamella Clarifiers are fully fabricated, assembled, and tested in our factory before shipping. The skid-mounted, containerized design allows clients to connect the inlet, outlet, and sludge lines for immediate operation.
Automated Sludge Discharge: Equipped with smart pneumatic/electric sludge valves or heavy-duty scraper systems, the clarifier automatically purges concentrated sludge based on timer or turbidity feedback, eliminating manual labor and preventing "sludge bulking."
3. Process Synergy: Combining Lamella Clarifiers with DAF Systems
For complex industrial wastewater—such as those containing both heavy metal precipitates, high TSS, and emulsified oils/grease—relying on a single technology is rarely enough. A highly successful process setup combines the Lamella Clarifier with a Dissolved Air Flotation (DAF) System:
Upstream DAF System: Removes lightweight suspended solids, fats, oils, grease (FOG), and surfactants by floating them to the surface using micro-bubbles.
Downstream Lamella Clarifier: Receives the DAF effluent to settle out heavy chemical flocs, metal hydroxides, and dense inorganic particles with the aid of coagulants (PAC/PAM).
This integrated approach ensures a TSS removal rate of over 95%, protecting downstream membrane filtration systems (like UF/RO) and ensuring trouble-free reuse or regulatory compliance.
Conclusion
Upgrading your wastewater facility shouldn't mean expensive civil engineering or sacrificing valuable factory space. By choosing an engineered, highly compact Lamella Clarifier, you achieve stable effluent quality, effortless TSS compliance, and lowered CAPEX/OPEX.
If you are currently planning a wastewater treatment project or upgrading an outdated settling tank, contact our engineering team today for customized 3D drawings and tailored technical proposals!
