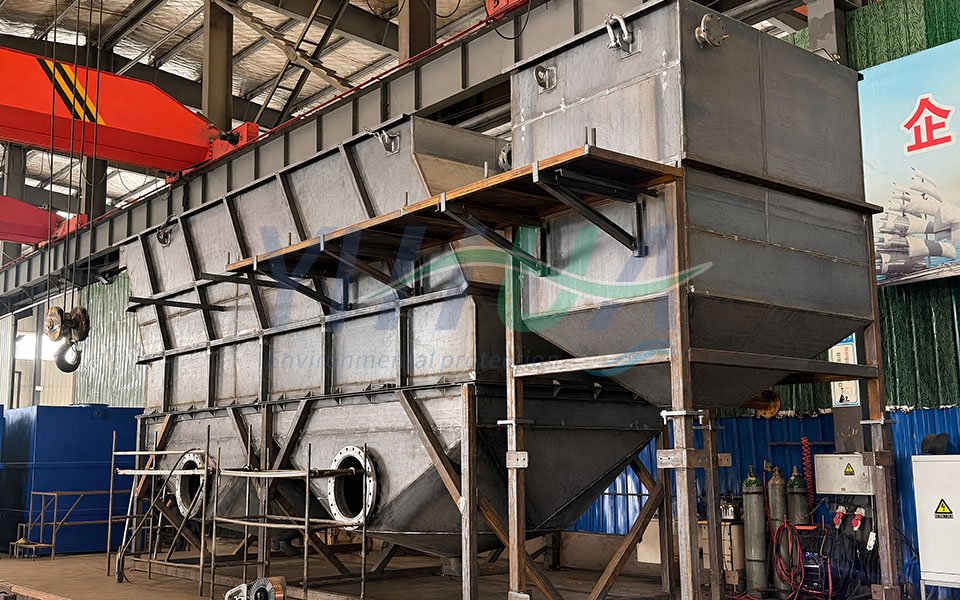

An Inclined Plate Clarifier is a compact sedimentation unit that removes settleable suspended solids from water and industrial wastewater. It uses a series of parallel inclined plates to create a large effective settling area inside a relatively small tank. This design makes it useful where conventional settling basins require too much land or civil construction.
The equipment is also commonly described as a Lamella Clarifier. Its main purpose is to separate solids that are denser than water, including mineral particles, metal hydroxide flocs, chemical precipitates, and properly conditioned biological or industrial sludge.
How the Inclined Plate Clarifier Works
Wastewater first enters an inlet zone designed to reduce turbulence and distribute flow across the tank. If the suspended particles are too fine to settle efficiently, coagulants and flocculants are added before clarification. These chemicals destabilize fine particles and combine them into larger, heavier flocs.
The conditioned water then flows upward through the spaces between the inclined plates. As the water travels through these channels, solids settle onto the plate surfaces. The plates are installed at an angle that allows accumulated sludge to slide downward under gravity into the collection hopper.
Clarified water continues upward and leaves through outlet launders or collection channels. Sludge is removed from the bottom at controlled intervals or through an automatic discharge system. Stable inlet distribution and regular sludge withdrawal are essential because short circuiting and sludge buildup can reduce separation efficiency.
Why Inclined Plates Increase Efficiency
A conventional settling tank relies mainly on the horizontal surface area of the basin. An Inclined Plate Clarifier divides the settling zone into many shallow channels. Each plate provides additional projected settling area, allowing the unit to handle the same flow within a smaller footprint.
The shorter settling distance also gives particles more opportunities to contact a plate surface. However, the equipment does not make every contaminant settleable. Performance still depends on particle density, floc quality, hydraulic loading, plate spacing, water temperature, and flow distribution.
Where the System Performs Best
Inclined Plate Clarifiers are commonly applied after coagulation and flocculation in metal finishing, mining, chemical processing, food production, water treatment, and other industrial facilities. They are particularly effective for dense inorganic solids and chemical precipitates.
The technology is less suitable when the main contaminants are free oil, fats, grease, or other light particles. A DAF System is generally better for buoyant solids because microbubbles carry them to the surface. A CPI Separator may be installed upstream when the wastewater contains a significant free oil load.
Key Design and Operating Considerations
Correct selection requires representative flow and water quality data. Engineers should evaluate average and peak flow, suspended solids concentration, particle settling behavior, sludge volume, chemical compatibility, operating temperature, and required effluent quality.
Operators should also inspect the plate pack for blockage, scaling, deformation, and uneven flow. Routine cleaning, reliable sludge removal, and stable chemical dosing help preserve clarification performance.
Conclusion
An Inclined Plate Clarifier improves gravity separation by placing a large settling area inside a compact tank. Water moves upward between the plates while dense solids settle, slide downward, and collect in the sludge hopper. When the target contaminants are genuinely settleable and the hydraulic design is correct, the system provides a space efficient alternative to conventional sedimentation basins.
