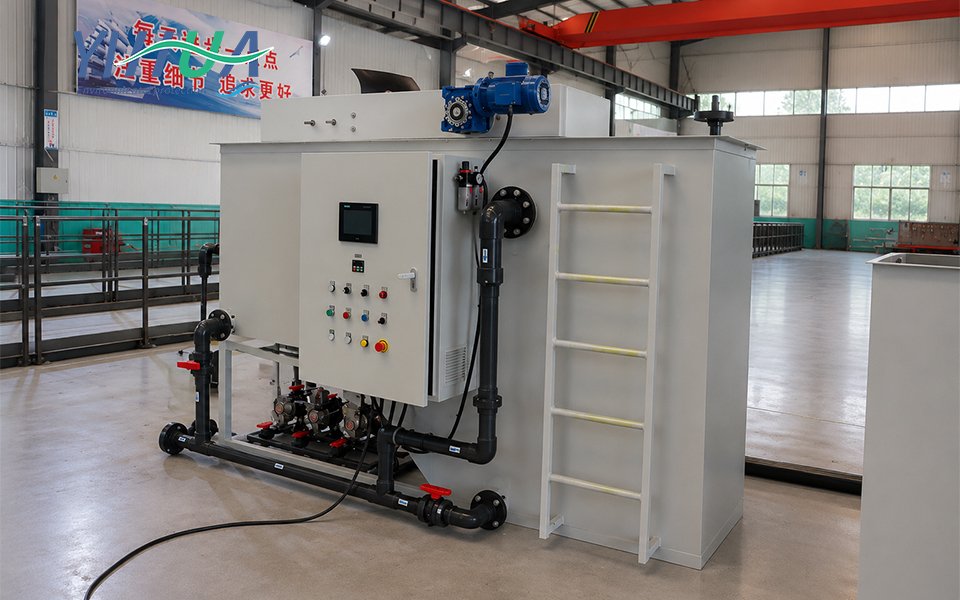

A CPI Separator, short for Corrugated Plate Interceptor, is a gravity-based oil-water separation system used in petroleum refining, metal machining, power generation, marine operations, vehicle maintenance, and other industries where oily wastewater requires treatment. It is widely regarded as an efficient alternative to conventional API gravity separators, providing effective oil separation within a much more compact footprint.
The CPI Separator is primarily designed to remove free and dispersed oil from industrial wastewater. Its performance comes from the combination of corrugated plate geometry, controlled flow conditions, and enhanced oil droplet coalescence.
How the CPI Separator Works
The CPI Separator contains a series of corrugated plates installed at an inclination of approximately 45 to 60 degrees inside a vessel. As oily wastewater flows through the narrow channels between adjacent plates, oil droplets and heavier suspended solids move in opposite directions.
Oil droplets rise through the wastewater and contact the underside of the plates above them. The corrugated surface creates small collection areas where oil droplets accumulate and merge with neighboring droplets. As the droplets become larger, their buoyancy increases and they rise more rapidly along the plate surface toward the oil collection zone.
At the same time, suspended solids that are denser than water settle onto the upper surface of the plate below and slide downward under gravity into the sludge collection area.
The narrow channels between the plates also create a relatively stable, low-turbulence flow environment. This helps prevent separated oil from being re-entrained and reduces the risk of settled solids being resuspended.
Why Corrugated Plates Improve Oil Separation
The corrugated plate is the defining feature of the CPI Separator. Compared with conventional flat inclined plates, the corrugated profile provides additional surface area and creates controlled flow channels that promote oil droplet coalescence.
This allows the system to capture smaller dispersed oil droplets than conventional gravity separation. Depending on wastewater characteristics and system design, CPI technology can effectively separate oil droplets down to approximately 60 microns, with optimized systems capable of handling even finer droplets.
This extended separation range is particularly useful in industrial wastewater, where pumping, mixing, and process operations can break free oil into smaller dispersed droplets that would otherwise remain in the water for extended periods.
Compact Design and Operational Advantages
One of the main reasons for the widespread use of CPI Separators is their compact footprint. For the same treatment capacity, a CPI system can occupy approximately 10 to 20 percent of the space required by an equivalent API separator.
The system also contains relatively few mechanical components within the separation zone. There are no rotating scraper mechanisms inside the process area, and the separation process itself does not depend on compressed air or complex mechanical movement. This makes CPI technology particularly attractive for offshore platforms, remote industrial sites, and other locations where maintenance access is limited.
The multiple parallel channels also help distribute hydraulic flow more evenly than a conventional single-chamber gravity separator, allowing the CPI to maintain stable separation performance under moderate flow fluctuations.
For applications involving volatile hydrocarbons, enclosed CPI configurations can further reduce vapor emissions and provide additional safety benefits compared with open-top gravity separation tanks.
What a CPI Separator Cannot Remove
The CPI Separator is a primary oil separation technology rather than a complete wastewater treatment system. Its main function is the removal of free and dispersed oil. Very fine emulsified oil droplets and dissolved hydrocarbons generally require additional treatment.
Where higher effluent quality is required, a DAF System can be installed downstream to remove finer oil droplets and residual suspended matter through micro-bubble flotation.
If the wastewater also contains significant quantities of dense suspended solids, a Lamella Clarifier can be incorporated into the treatment process to provide additional solids separation. The resulting treatment train can therefore combine CPI for primary oil separation, DAF for fine oil polishing, and Lamella clarification for suspended solids management.
Conclusion
A CPI Separator removes free oil from industrial wastewater by combining enhanced gravity separation with corrugated plate coalescence. The plate geometry increases effective separation area, promotes the formation of larger oil droplets, and provides a controlled flow environment that improves overall separation efficiency.
Its compact footprint, simple mechanical design, and ability to capture dispersed oil make CPI technology a practical primary treatment solution for petroleum, petrochemical, marine, metalworking, power generation, and other oily wastewater applications.
When integrated with DAF System polishing and Lamella Clarifier solids separation where required, the CPI Separator can form an effective and reliable part of a complete industrial oily wastewater treatment system.
