The oil and gas sector generates some of the most complex wastewater streams in any industrial environment. From upstream drilling operations and offshore platforms to midstream pipelines and downstream refineries, large volumes of produced water are generated daily. These streams contain mixtures of free oil, dispersed hydrocarbons, emulsified oils, suspended solids, and dissolved salts, all of which must meet increasingly strict discharge or reinjection standards.
Across the industry, operators are increasingly adopting the Corrugated Plate Interceptor CPI as a primary separation technology due to its high efficiency, compact design, and mechanical simplicity in demanding operating environments.
1. Complexity of Produced Water in Oil and Gas Operations
Produced water is the largest waste stream in oil and gas production. Depending on reservoir maturity, operators may generate three to ten barrels of water per barrel of oil.
This wastewater typically contains:
Free and dispersed oil droplets
Suspended solids such as formation sand and scale
Dissolved salts and heavy metals
Trace naturally occurring radioactive materials NORM
A major challenge lies in the wide distribution of oil droplet sizes. While larger droplets above 150 microns can be removed by basic gravity separation, smaller dispersed and emulsified droplets require enhanced separation mechanisms. The CPI system is specifically engineered to target this intermediate droplet range efficiently without high energy input or complex equipment.
2. Working Principle of CPI Systems

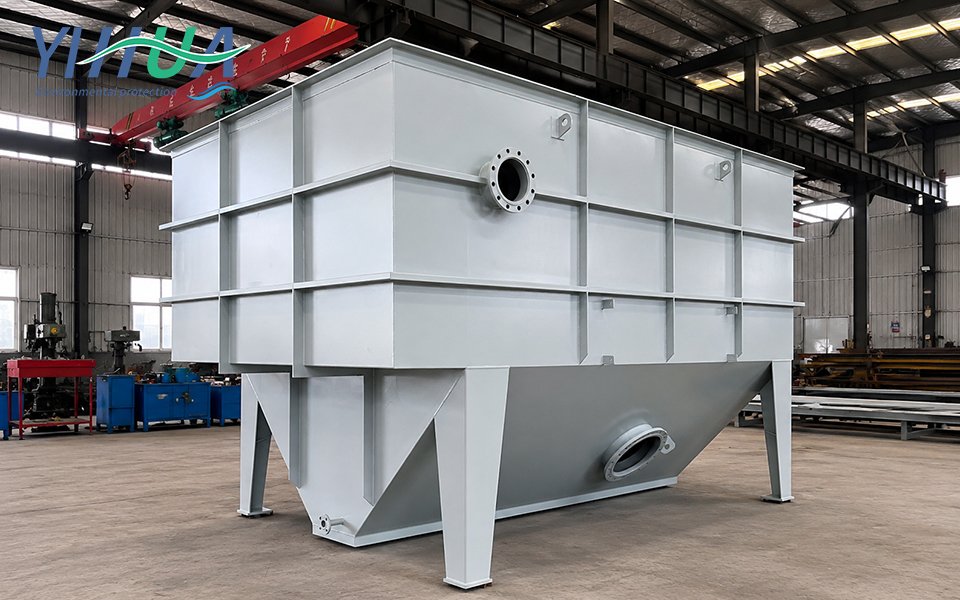

The Corrugated Plate Interceptor CPI operates on an enhanced gravity separation principle.
A series of inclined corrugated plates, typically installed at 45 to 60 degrees, creates narrow flow channels where oily water passes through. Within these channels:
Oil droplets rise and attach to the underside of the plates, coalesce into larger droplets, and migrate upward into a collection zone, while heavier solids settle downward into a sludge hopper.
The corrugated geometry improves performance by increasing effective coalescence area and reducing turbulence, allowing smaller oil droplets sufficient time to separate.
This design enables oil removal efficiencies of up to 90 percent for droplets above 60 microns, within a significantly smaller footprint compared to conventional API separators.
3. Key Advantages Driving CPI Adoption
Compact Footprint
Space constraints are especially critical in offshore platforms and remote oilfield installations. The CPI system requires only 10 to 20 percent of the footprint of a conventional gravity separator, making it highly suitable for space-limited environments.
Mechanical Simplicity and Reliability
The CPI contains no rotating equipment within the separation chamber and no internal moving mechanical parts. This results in:
High operational reliability
Low maintenance requirements
Minimal unplanned downtime
This is particularly valuable in offshore or remote operations where maintenance access is costly and limited.
Stable Performance Under Variable Flow
Oil and gas production flow rates fluctuate significantly due to operational and reservoir conditions. Because CPI separation is based on gravity and geometry rather than mechanical force, it maintains stable performance across a wide range of flow conditions without operator intervention.
Performance in Harsh Conditions
Produced water often arrives at elevated temperatures and high salinity levels. The CPI plate pack design can be customized to accommodate changes in fluid density and viscosity, ensuring consistent separation performance even in challenging reservoir environments.
4. CPI in Integrated Treatment Systems
In most applications, the CPI functions as the primary bulk oil removal stage within a multi-stage treatment train.
After CPI treatment, water typically proceeds to secondary polishing systems. In offshore discharge or reinjection applications requiring higher effluent quality, a DAF System Dissolved Air Flotation is often used to remove fine emulsified oil fractions.
Where suspended solids such as sand or scale are present, a Lamella Clarifier may be integrated to handle solids separation.
This staged configuration consisting of CPI for bulk oil removal, DAF for fine oil polishing, and Lamella Clarifier for solids management represents current best practice in produced water treatment.
5. Regulatory Compliance and Environmental Performance
Environmental regulations for produced water discharge are becoming increasingly stringent worldwide. Many offshore standards now require oil in water concentrations below 30 milligrams per liter, with some regions targeting even lower thresholds.
The CPI system provides a stable and predictable primary separation performance, helping operators maintain compliance and reduce the risk of discharge exceedances during process upsets.
Its passive design also contributes to operational consistency and simplified regulatory reporting.
Conclusion
The growing adoption of CPI systems in the oil and gas industry reflects increasing demand for efficient, compact, and reliable produced water treatment solutions. As water production volumes rise and environmental regulations tighten, CPI technology offers a proven method for bulk oil removal with minimal operational complexity.
When integrated with downstream DAF polishing systems and Lamella Clarifiers, the CPI forms the foundation of a robust and scalable produced water treatment train capable of meeting modern industry performance and compliance requirements.
