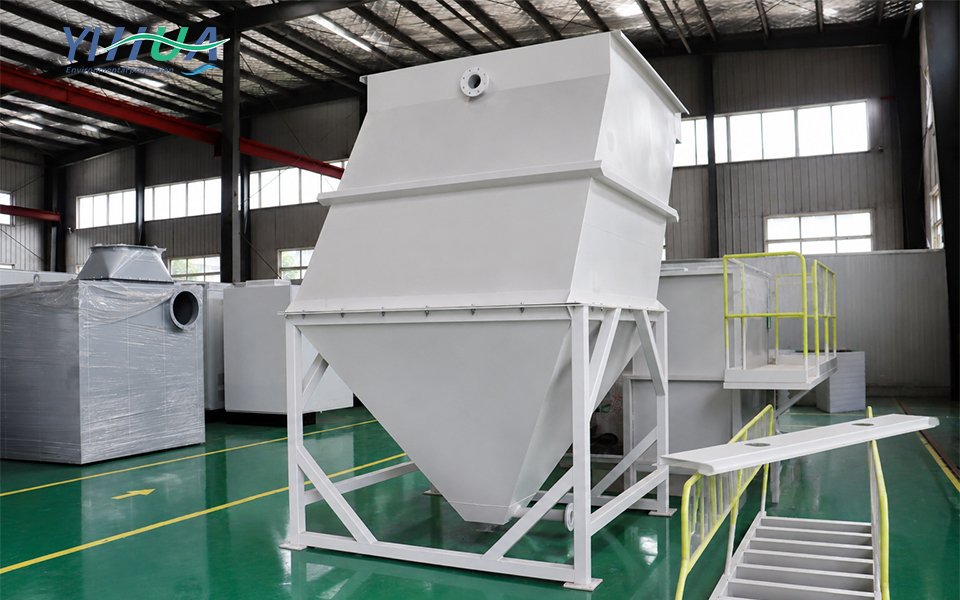

The number of inclined plates inside a Lamella Clarifier is not simply a manufacturing choice or a standard configuration. It is one of the most important design factors determining the effective settling area of the system and directly affects whether the clarifier can achieve the required effluent quality at the design flow rate.
If the plate quantity is insufficient, the clarifier may experience excessive hydraulic loading, resulting in poor solids separation and unstable effluent quality. On the other hand, installing more plates than necessary increases equipment cost and complexity without providing additional treatment benefits once the wastewater limitations have been reached.
For engineers evaluating a Lamella Clarifier design, understanding how plate quantity is calculated and how the plate pack influences performance is essential for selecting a properly sized system.
Determining the Required Effective Settling Area
The number of plates required in a Lamella Clarifier is determined by the effective settling area needed for the specific wastewater application.
Unlike a conventional settling tank, where settling capacity mainly depends on the horizontal tank surface area, a Lamella system increases settling capacity by using multiple inclined plate surfaces. Each plate contributes additional settling area, allowing a compact vessel to achieve the performance of a much larger conventional clarifier.
The effective settling area contributed by each plate depends on its length, width, and installation angle. When multiple plates are assembled into a plate pack, the total settling area is the combined projected area of all plates.
In practical design calculations, the required plate quantity is determined by matching the total effective settling area with the design flow rate and target surface loading rate.
For typical inorganic solids separation applications, the surface loading rate is generally designed within the range of 1.0 to 2.5 m³/m²/h. For lighter particles, fine colloidal solids, or biological flocs, a lower loading range of approximately 0.5 to 1.0 m³/m²/h is often required to provide sufficient settling performance.
The calculation should always be based on the peak design flow rather than average daily flow. Industrial wastewater systems often experience significant flow fluctuations during production cycles, and sizing based only on average flow can result in hydraulic overload during peak operation.
Key Factors Affecting Plate Quantity
The required number of inclined plates is influenced by several design variables, including plate dimensions, inclination angle, spacing, and wastewater characteristics.
Plate Dimensions
Larger plates provide more settling area per individual plate and therefore reduce the total number of plates required.
Industrial Lamella Clarifier plate sizes commonly vary depending on vessel design and application requirements. Longer plates increase the available settling path and can improve separation of finer particles, but they also require greater vessel height to accommodate the plate pack at the selected inclination angle.
The plate dimensions must therefore be balanced between settling performance, equipment footprint, and structural requirements.
Plate Inclination Angle
The inclination angle affects both settling area and sludge discharge performance.
A steeper plate angle, typically closer to 60 degrees, provides better solids sliding characteristics, especially for lighter or sticky flocs. However, because the projected horizontal settling area per plate decreases, more plates may be required to achieve the same total settling area.
A shallower angle, closer to 45 degrees, increases the projected settling area per plate and can reduce the required plate quantity. However, it requires well-formed flocs that can slide smoothly without accumulating on the plate surface.
The optimum angle depends on the type of solids being removed and their settling characteristics.
Plate Spacing
Plate spacing does not directly determine the required settling area, but it strongly affects hydraulic performance and solids handling.
Narrow plate spacing, typically around 50 to 60 mm, allows more plates to be installed within the same vessel width, increasing total settling area and reducing equipment footprint.
However, wastewater containing high concentrations of suspended solids or scaling compounds may require wider spacing, typically 80 to 120 mm, to reduce the risk of blockage and maintain stable flow distribution.
For mining, metal processing, and other high solids applications, plate spacing is often increased to improve reliability.
Design Flow Rate
The plate pack must always be sized according to the maximum expected hydraulic loading condition.
Using average daily flow instead of peak flow is one of the most common Lamella Clarifier sizing mistakes. A system may appear to operate correctly during normal conditions but fail during production peaks when hydraulic loading exceeds the design limit.
Proper sizing should consider actual operating patterns, including batch production, cleaning cycles, and seasonal flow changes.
Verifying the Design Through Overflow Rate Calculation
After determining the plate quantity and vessel dimensions, the design should be checked by calculating the actual surface loading rate at peak flow.
This verification confirms whether the selected plate pack provides sufficient settling capacity under real operating conditions.
A well-designed Lamella Clarifier should operate within the recommended surface loading range and ideally maintain some additional capacity margin. This allows the system to handle short-term increases in flow rate or suspended solids concentration without significant deterioration in effluent quality.
If the calculated loading rate exceeds the recommended range, adjustments may include increasing plate quantity, enlarging the clarifier size, or improving upstream equalization to reduce peak hydraulic fluctuations.
Common Mistakes in Lamella Clarifier Plate Design
One of the most frequent errors is sizing the clarifier based on average flow instead of peak flow. This often results in a system that appears correctly designed but repeatedly fails during high-load operating periods.
Another common mistake is calculating settling capacity based on the vessel footprint rather than the actual projected plate area. The performance of a Lamella Clarifier comes from the inclined plate surfaces, not simply the external dimensions of the tank.
Engineers should also consider inactive areas within the plate pack. The inlet distribution zone and outlet collection area reduce the actual active settling length compared with the theoretical full plate length. Applying an efficiency factor during design helps provide a more realistic performance prediction.
Conclusion
The correct number of inclined plates for a Lamella Clarifier is determined by the required effective settling area, which depends on peak design flow, wastewater characteristics, and the target surface loading rate.
Plate dimensions, inclination angle, and spacing all influence how much settling capacity each plate contributes and how reliably solids are discharged from the system.
A properly designed plate pack should not only meet theoretical calculations but also provide sufficient operating margin for real industrial conditions, where flow fluctuations, solids variations, and process changes are unavoidable.
By verifying the design through peak-flow loading calculations and considering practical factors such as plate efficiency and sludge behavior, engineers can ensure that the Lamella Clarifier delivers stable clarification performance throughout its service life.
