Understanding the "Shallow Depth" Principle Behind Modern Wastewater Treatment Equipment

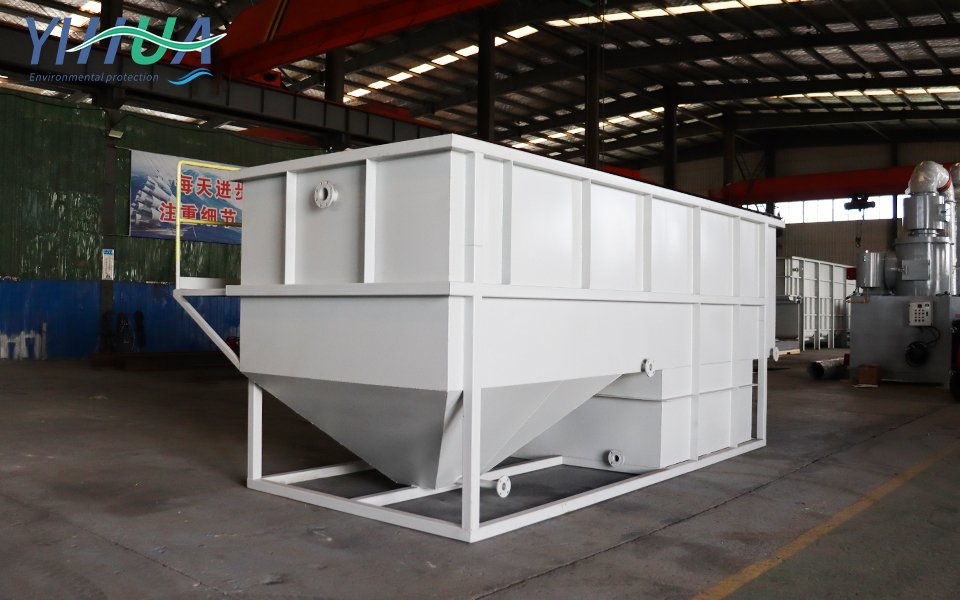

In the field of industrial wastewater and municipal sewage treatment, the inclined plate settler (also known as a lamella clarifier) has become a core piece of wastewater treatment equipment for upgrading facilities. As environmental protection land costs rise and discharge standards become stricter, traditional sedimentation tanks often fail to meet the demand for high efficiency in a small space. The inclined plate settler utilizes the "Shallow Depth Sedimentation Theory" to significantly improve solid-liquid separation efficiency, achieving ideal effluent water quality in just a fraction of the footprint.
Why is it called "Shallow Depth"? A Simple Analogy
To understand how an inclined plate settler works, imagine a high-speed train station.
A traditional sedimentation tank is like a regular station where passengers must walk down a very long, horizontal platform to reach the exit. This takes a long time.
Now, imagine building multiple escalators or sloped moving walkways within that same space. Passengers (which represent suspended solids) only need to travel a short vertical distance onto the "escalator" (the inclined plate) and then slide down quickly to the bottom.
This is the core of the "Shallow Depth" theory: shortening the settling distance. Instead of particles sinking slowly through 3 or 4 meters of water, they only need to sink a few centimeters onto the plate surface before sliding down .
How It Works: Mechanics Made Simple
The interior of this equipment is packed with numerous parallel plastic or stainless steel plates, installed at a 60° angle .
The Flow Path: Water flows from the bottom up through these plates.
The Separation: Suspended solids (sludge) quickly settle onto the plates due to gravity.
The Slide: Once a particle lands on the plate, the 60° incline causes it to slide down by gravity into a sludge hopper at the bottom.
The Result: Clean water continues to rise and is collected in troughs at the top .
Key Advantages You Can Expect
Switching to or installing an inclined plate settler offers several measurable benefits:
High Efficiency, Small Footprint: By increasing the effective settling area, the equipment can handle 3 to 5 times the flow rate of a conventional tank in the same floor space . For example, in major projects like the Atotonilco wastewater treatment plant in Mexico, specialized inclined plate systems have successfully increased effective settling capacity by 86% without expanding the facility's footprint .
Stable Water Flow: Water flows between the plates in a "laminar" (smooth) state, which is much more stable than the turbulent flow in large open tanks. This stability ensures that fine particles settle effectively and aren't washed away .
Lower Operating Costs: Because the sludge slides down by gravity, there are no moving parts inside the settling zone, reducing maintenance needs and energy consumption .
What to Consider During Operation
While the technology is robust, regular maintenance ensures longevity. Operators should monitor the inlet distribution to ensure water spreads evenly; uneven flow can disturb the sludge layer. Additionally, for wastewater with high viscosity or oil, regular cleaning systems are necessary to prevent the plates from clogging .
In summary, for factories or municipal plants facing land limitations or needing to increase production capacity, the inclined plate settler offers a practical, scientifically proven method to enhance water treatment performance without requiring massive civil construction.
