Than a Round Settling Tank?
For plant engineers evaluating solid-liquid separation technologies, understanding how a Lamella Clarifier works and how it compares with a conventional round settling tank is essential for making the right equipment selection. Both technologies are designed to separate suspended solids from wastewater, but they achieve this through different engineering principles. These differences directly affect installation footprint, construction cost, maintenance requirements, and long-term treatment performance.

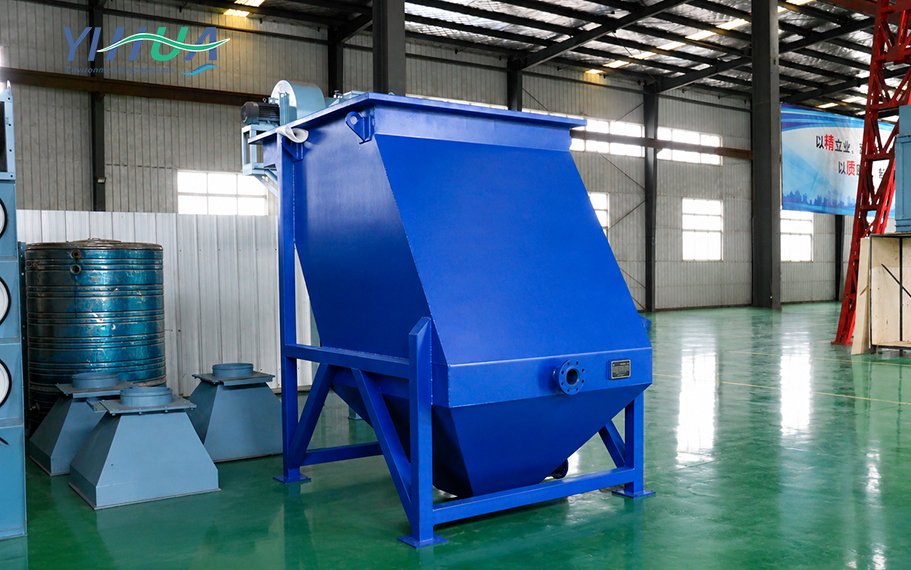

The Lamella Clarifier uses enhanced gravity sedimentation through a series of closely spaced inclined plates installed inside a compact vessel. These plates are typically arranged at an angle of 45 to 60 degrees. As wastewater flows upward through the narrow channels between the plates, suspended particles settle onto the inclined surfaces instead of traveling through the full depth of a traditional settling tank.
Once solids attach to the plate surfaces, they slide downward under gravity into the sludge collection hopper, while clarified water continues upward and exits through the overflow weir. The separation process is primarily passive, without the need for rotating equipment, compressed air, or recycle pumps within the clarification zone.
The main engineering advantage of the Lamella Clarifier is the significant increase in effective settling area. In a conventional tank, settling capacity is determined mainly by the horizontal floor area. In contrast, a Lamella unit uses multiple inclined surfaces to create a much larger settling area within the same physical footprint. A properly designed Lamella Clarifier can provide up to ten times the effective settling area of a conventional round clarifier occupying the same installation space.
How a Round Settling Tank Works
A conventional round settling tank relies on traditional gravity sedimentation. Wastewater enters through a central feed well, flows outward toward the perimeter overflow weir, and suspended solids gradually settle to the bottom of the tank.
A rotating scraper mechanism then moves settled sludge toward a central collection point for removal.
The round settling tank is a proven technology with decades of operating history in municipal and industrial applications. However, its biggest limitation is that treatment capacity is directly related to tank diameter. Increasing capacity requires a larger tank structure, which means more land area, more concrete construction, and longer installation periods.
Why Lamella Clarifiers Provide Higher Efficiency
The biggest advantage of a Lamella Clarifier is its ability to achieve high settling capacity within a compact footprint. A Lamella system can provide similar settling performance to a much larger conventional settling tank while occupying only a fraction of the installation area.
This footprint advantage is especially important for industrial facilities where available land is limited, including existing factories, retrofit projects, and sites located in urban or high-value industrial areas.
Another important difference is the particle settling distance. In a round settling tank, particles must travel through the full depth of the tank before reaching the bottom. In a Lamella Clarifier, particles only need to travel the short distance between adjacent inclined plates, typically around 50 to 80 millimeters.
This shorter settling path allows particles to separate more quickly and enables higher hydraulic loading within a smaller vessel.
The simplified mechanical structure of the Lamella Clarifier also provides operational advantages. Unlike round settling tanks that require rotating scraper bridges and associated drive systems, Lamella units rely mainly on gravity to move settled solids toward the sludge hopper. This reduces mechanical components, lowers maintenance requirements, and improves long-term reliability.
Installation speed is another important consideration. A prefabricated Lamella Clarifier can typically be delivered as a complete unit and installed on a prepared foundation within a short timeframe. By comparison, a round settling tank requires extensive civil construction work, including excavation, concrete installation, curing, and waterproofing before operation.
Choosing Between a Lamella Clarifier and a Round Settling Tank
The Lamella Clarifier is particularly suitable for industrial wastewater applications involving dense settleable solids, including metal hydroxide sludge, mineral particles, and coagulated solids from chemical treatment processes.
It is also the preferred choice when projects require:
Limited installation space
Fast deployment
Retrofit integration
Low energy consumption
Reduced maintenance requirements
However, round settling tanks still have advantages in certain large-scale applications. For very high flow facilities built on greenfield sites with sufficient available land, large diameter concrete clarifiers may remain economically competitive due to their scale advantages.
For biological wastewater treatment applications involving very light biological flocs, conventional secondary clarifiers or alternative technologies such as a DAF System may sometimes provide better performance depending on the wastewater characteristics and process design.
Conclusion
The Lamella Clarifier improves solid-liquid separation efficiency by increasing effective settling area through inclined plate technology, reducing particle settling distance, and eliminating the need for complex mechanical sludge scraping systems.
Compared with traditional round settling tanks, the Lamella Clarifier provides significant advantages in footprint efficiency, installation speed, construction cost, and operational simplicity.
For industrial wastewater plants treating dense settleable solids, especially where space and reliability are critical factors, the Lamella Clarifier represents a more efficient and practical engineering solution.
