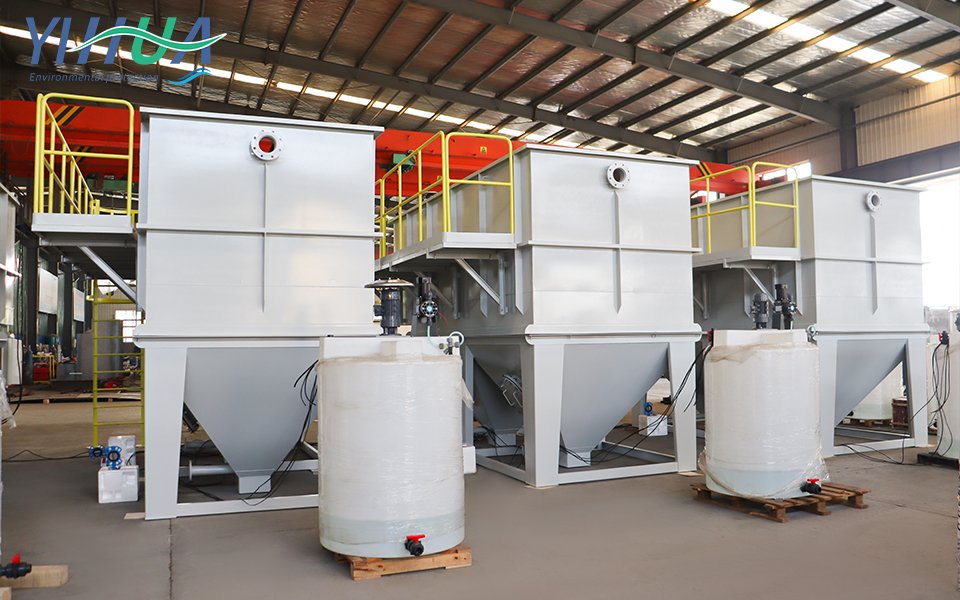

For facilities managing industrial or municipal wastewater, physical space and processing speed are primary operational concerns. Many plant operators ask how they can increase the solid-liquid separation capacity of their systems without expanding the physical footprint of their plant. The answer to this specific problem lies in a specialized piece of wastewater treatment equipment: the lamella clarifier. A lamella clarifier, also known as an inclined plate clarifier, is engineered to separate solid particles from liquids effectively. This article explains the technical operation of this equipment and details how its specific structural design resolves space limitations in modern wastewater management.
The Principle of Gravity Settling on Inclined Plates
The fundamental process operating inside a lamella clarifier is gravity settling. In a standard, traditional settling tank, water remains relatively still, and suspended solids fall to the bottom of the tank over a long period. A lamella clarifier accelerates this process by utilizing a series of parallel, inclined plates installed inside the main tank.
As the untreated wastewater enters the equipment, it is directed to flow upward between these parallel plates. The solid particles suspended in the water settle onto the surface of the plates as the water moves. Because the plates are positioned at a specific angle—typically between 55 and 60 degrees—the settled solid materials slide down the smooth plate surfaces into a collection hopper located at the bottom of the unit. Simultaneously, the clarified, clean water exits through the top of the clarifier.
Maximizing Effective Settling Area
The primary advantage of a lamella clarifier is its proven ability to maximize the effective settling area within a minimal physical footprint. In conventional clarifiers, the total settling capacity is directly dependent on the horizontal surface area of the tank floor. If a facility needs to process a higher volume of water, it must construct a tank with a larger diameter or length.
In contrast, the lamella clarifier uses the total surface area of each individual inclined plate. By stacking multiple plates closely together, the total available settling area is multiplied significantly. This specific internal configuration allows a lamella clarifier to provide the same settling capacity as a conventional circular or rectangular tank that is up to ten times larger in physical size. Consequently, facilities can install this equipment indoors or in heavily restricted outdoor areas where traditional tanks simply will not fit.
Processing Different Wastewater Types
This equipment is applied across various water treatment processes. It is utilized to process industrial runoff, heavy metal wastewater, and municipal sewage. The lamella clarifier effectively removes heavy non-soluble solids, grit, and chemically coagulated flocs.
Before the wastewater enters the clarifier, chemicals such as coagulants and flocculants are frequently added to the water. These chemicals cause microscopic particles to bind together into larger, heavier masses. These larger masses then settle much more rapidly on the inclined plates. The precise spacing between the plates is calculated and determined by the specific type of wastewater being processed and the average size of the solid particles it contains.
Structural Materials and Durability
The materials used to construct a lamella clarifier contribute directly to its long-term operational efficiency. The outer holding tank is typically manufactured from carbon steel coated with a protective epoxy layer, or from stainless steel, depending on the corrosive nature of the wastewater.
The internal inclined plates are most commonly manufactured from lightweight, chemical-resistant plastics such as polyvinyl chloride (PVC) or fiberglass-reinforced plastic (FRP). These materials prevent the physical degradation of the plates when exposed to harsh chemicals or fluctuating pH levels in the wastewater. The smooth surface of these plastics also minimizes friction, ensuring the settled solids slide down into the sludge hopper with minimal resistance.
Conclusion
In summary, a lamella clarifier improves wastewater treatment efficiency by utilizing stacked, inclined plates to drastically increase the available settling area. This specific design reduces the required physical footprint of the equipment while maintaining high processing speeds. For facilities that need to process high volumes of wastewater but lack the physical land for large conventional settling tanks, this equipment provides a functional, objective solution for efficient solid-liquid separation.
