A common concern among plant owners and facility engineers is not only meeting discharge permits but also managing the ongoing expense of running a treatment line. The question often posed is: What combination of wastewater treatment equipment provides the lowest total cost of ownership while maintaining reliable compliance? The answer frequently lies in selecting the right technology for each specific contaminant group, thereby avoiding energy waste, excessive chemical consumption, and premature component wear. This article examines how Lamella Clarifier, Dissolved Air Flotation (DAF) System, MBBR (Moving Bed Biofilm Reactor), and CPI (Corrugated Plate Interceptor) units contribute to cost-efficient operations when applied correctly.

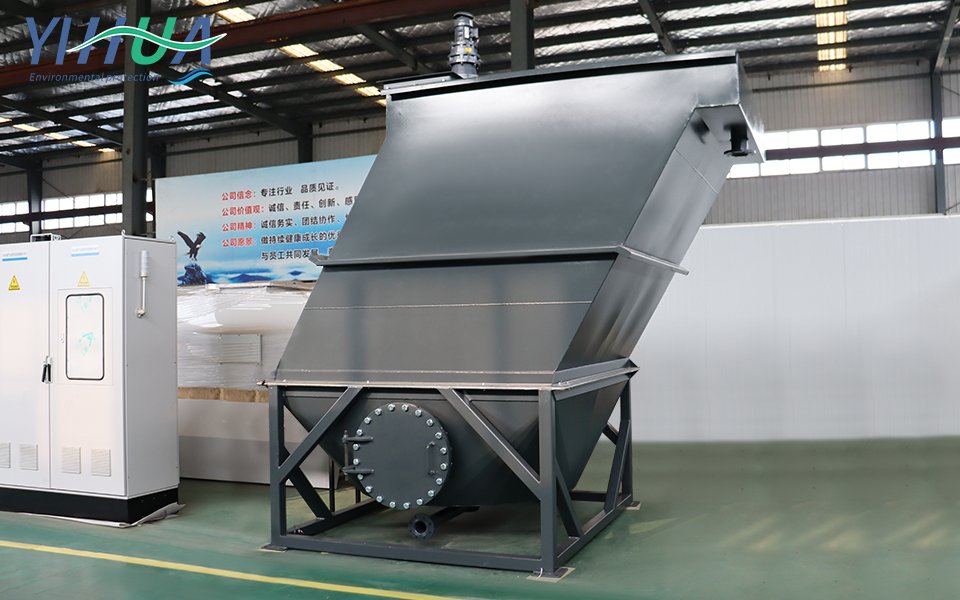

Using a Lamella Clarifier to Cut Sludge Handling Expenses
The Lamella Clarifier offers a direct path to operational savings by concentrating solids removal into a small, efficient footprint. Because the inclined plate design accelerates the settling of heavy particulates, the resulting underflow sludge is denser and contains less water than effluent from a conventional settling pond. This higher solids concentration translates into reduced hauling and disposal fees for dewatered sludge. In applications such as stone cutting wastewater or ceramic industry rinse water, installing a Lamella Clarifier ahead of finer filtration steps prevents rapid clogging of downstream membranes or media, extending the service life of more expensive polishing components.
DAF System and the Reduction of Chemical Coagulant Use
A Dissolved Air Flotation (DAF) System can influence operating budgets through its interaction with pretreatment chemistry. When a DAF wastewater treatment unit is properly sized and operated, the micro-bubble cloud effectively floats oils and light solids with minimal reliance on high doses of coagulants or flocculants. This means lower monthly expenditures on treatment chemicals. Moreover, removing the bulk of fats, oils, and grease in a DAF unit protects subsequent biological stages from fouling and shock loads, reducing the frequency of costly biomass recovery efforts or reactor cleanouts. Food processors and industrial laundries often find that a well-tuned DAF pays for itself through chemistry savings alone.
MBBR Technology and Energy Efficiency Compared to Conventional Aeration
Energy consumption is a major factor in the cost profile of any biological treatment step. The MBBR (Moving Bed Biofilm Reactor) is frequently selected over traditional activated sludge systems precisely because it eliminates the need for return activated sludge pumping and large-volume aeration basins. In an MBBR wastewater treatment configuration, the biofilm carriers retain a high concentration of active biomass within the reactor, which allows the system to handle organic loads using less blower horsepower per pound of BOD removed. For industrial facilities with variable production schedules—such as seasonal food canning operations—the MBBR can also be taken offline or operated at reduced airflow during downtimes, providing further utility savings.
CPI Separator and the Prevention of Downstream Maintenance Issues
The CPI (Corrugated Plate Interceptor) contributes to lower long-term costs primarily by preventing expensive problems elsewhere in the treatment train. Free oil and large hydrocarbon globules, if allowed to enter a DAF or MBBR unit, can coat sensor probes, foul air diffusers, and inhibit oxygen transfer to biofilms. A CPI Oil Separator installed at the headworks removes these troublesome free oils passively, using gravity and coalescing plates without requiring external power for the separation process itself. This gravity-driven CPI interceptor operation results in near-zero energy cost for the primary oil removal stage while safeguarding more sensitive and power-intensive equipment further down the line.
Strategic Equipment Layout for Minimal Lifecycle Spend
Achieving a low total cost of ownership in industrial wastewater treatment equipment selection is less about finding a single universal solution and more about sequencing the right technologies in the optimal order. A practical and cost-conscious arrangement often begins with a CPI Oil Water Separator to strip out free oil with no power demand, followed by a Lamella Clarifier to drop out heavy settleable solids and reduce sludge volume. The partially clarified water then passes to a DAF System for fine solids and emulsified oil polishing, and finally to an MBBR for biological oxidation of remaining soluble contaminants. By letting gravity and passive separation handle the heaviest lifting first, operators can minimize the electrical and chemical demands on the more complex units. Consulting with a supplier who can model the entire flow sheet based on site-specific water analysis is the surest way to avoid both capital overspend and ongoing operational waste.
